Máquina de rolamento da bola da proteína
Created with Pixso.

Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm

Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm

Nome da marca: PAPA
Número do modelo: P160
MOQ: 1 conjunto
preço: Negociável
Condições de pagamento: T/T ou L/C à vista
Capacidade de abastecimento: 80 conjuntos/mês
Informações detalhadas
Lugar de origem:
China
Certificação:
CE certificate
Formato do produto:
formato de bola
Dimensão:
2400*860*1300MM
Material:
Aço Inoxidável 304
Poder:
1,75kW
Peso do produto:
10-250g
Garantia:
1 ano
Aplicação:
Fazendo bolas de proteína
Características:
Automático, fácil de operar, alta eficiência
Detalhes da embalagem:
caixa de madeira
Habilidade da fonte:
80 conjuntos/mês
Destacar:

1.75kW Power Energy Ball Making Machine

,

3

,

000 - 5

Descrição do produto
P160 Automatic Center Filled Energy Ball Making Machine

Description:



The P160 automatic center filled energy ball making machine is the energy ball forming equipment that we desigend for many kinds of ball shape food products making, such as energy ball, protein ball, date ball, coconut ball, bounty ball, bliss ball, rum ball, enery bites, cookie dough ball, cookie dough bites, cake pops, chocolate ball, truffles, brigadeiro, tamarind ball, marzipan, bunelos, sesame ball, cheese ball, cheese nuggets, potato ball, ladoo, etc.


P160 Automatic center filled energy ball making machine consists of P160 Automatic encrusting machine, P160-1 Automatic energy ball rolling machine and P160-2 Coconut flakes coating machine.


The P160 Automatic encrusting machine is the major extruder machine for making both center filled balls and non-filled balls. There are two hoppers: left hopper for the dough casing and extrusion, the other right hopper for center fillng materials. The ball sizes can be changed by the extrusion nozzles mold.


The P160-1 Automatic energy ball rolling machine is special made for rolling the dough into ball shape. The ball diameter range is 10mm-50mm. The energy ball roller machine consists of stainless 304 structure and teflon coated aluminum rolling wheel. The rolling wheel need to be customized according to customer's ball diameter. It is easy to replace and operate.


The P160-2 Automatic coconut flakes coating machine inside is inserted a rotating drum with adjustable speed. The coconut flakes coating machine can coat coconut flakes,   grounded nuts, smashed nuts, seeds, and so on.

The multifunctional stuffed energy ball making machine is flexible with each section can be separately used. Customer can take either one of them according to their needs.


If customer need to make center filled energy ball, he need to load the right hopper with ceter filling materials, which can be chocolate, jam, fruit paste, cream, peanut butter, etc. If customer need to make normal balls without stuffing, he just keep the right hopper empty or load it with the casing dough.

The P160 automatic center filled energy ball making machine is designed for producing various ball-shaped food products including energy balls, protein balls, date balls, coconut balls, truffles, and more. This versatile system consists of three main components that can operate together or independently.
Machine Components
  • P160 Automatic Encrusting Machine: Primary extruder with dual hoppers for dough casing and center filling materials
  • P160-1 Automatic Energy Ball Rolling Machine: Forms dough into perfect spheres (10mm-50mm diameter)
  • P160-2 Coconut Flakes Coating Machine: Applies coatings like coconut flakes, nuts, or seeds
Key Features
  • Modular design allows independent use of each component
  • Stainless steel construction (304 grade, 316L optional) for food safety
  • Adjustable ball size (20mm-35mm) and weight (15g-40g)
  • Precise filling ratio control (10%-25%)
  • Multi-language PLC touchscreen control system
Technical Specifications
Parameter Description
Production Capacity 3,000 - 5,000 pcs/hour (depending on ball size)
Ball Diameter 20mm - 35mm (adjustable)
Ball Weight Range 15g - 40g (easily adjustable)
Filling Ratio (Peanut) 10% - 25% (precisely controllable)
Power Requirements Configurable for 380V/50Hz or 480V/60Hz and other regional standards
Control System Multi-language PLC Touchscreen (English, Spanish, Arabic, etc.)
Construction Material Contact Parts: 304 Stainless Steel (316L optional)
Target Markets
  • Europe & North America: Health-conscious markets for clean-label, high-protein, gluten-free, or vegan products
  • Middle East: HALAL-certified energy balls using dates and nuts
  • South America: Nutritious snacks using regional ingredients like peanuts and cocoa
Competitive Advantages
  • Speed to Market: Rapidly launch professional-grade products
  • Operational Efficiency: Replaces multiple manual steps, reducing labor costs and waste
  • Brand Consistency: Ensures uniform product quality and appearance
  • Export Readiness: Compliant with international trade requirements

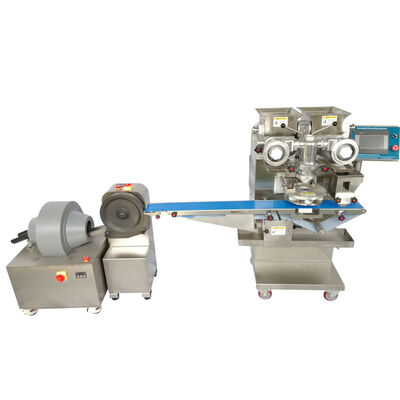

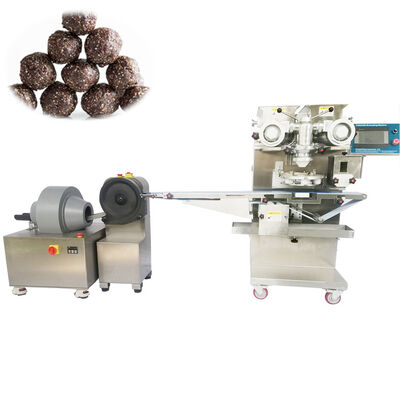

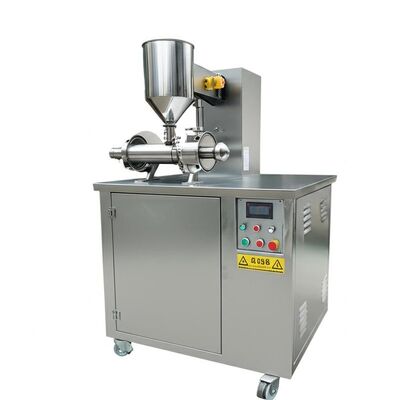

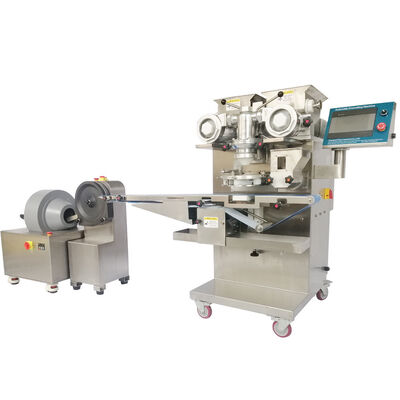

Production Line Images
Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm 0
Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm 1
Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm 2
Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm 3
Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm 4
Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm 5
Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm 6
Automatic Center Filled Energy Ball Making Machine with 1.75kW Power, 3,000 - 5,000 pcs/hour Capacity, and Adjustable Ball Diameter 20mm - 35mm 7
Frequently Asked Questions
Q: Can the machine handle sticky ingredients like date paste and peanut butter?
A: Yes, the extruder and forming systems feature non-stick surfaces and precise temperature control to handle high-viscosity ingredients without clogging.
Q: How is coating application controlled to prevent waste?
A: The coating drum uses a tumbling action with a recycling system that sifts and returns excess powder, ensuring consistent application with minimal waste.
Q: Is the machine compliant with HALAL or other certifications?
A: Yes, the machine can be supplied with documentation to support HALAL, Kosher, or other certification processes.
Q: Can we test the machine with our own recipe?
A: Absolutely. We offer free production tests at our facility using your raw materials, complete with sample products and a video report.
